WIKING Mala 4 with natural stone cladding grey
Steel color
Black
Grey
Stonetypes
Natural Stone grey
Product benefits
Technical specifications
Designer

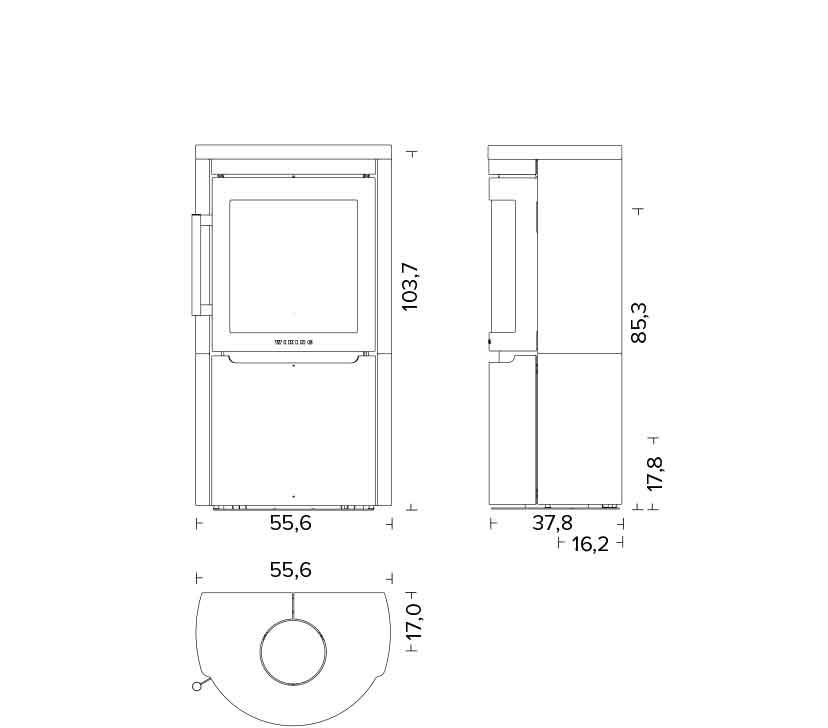

Measurement drawing
Manuals & download
Technical specifications
Technical data
Energy efficiency class WIKING® Autopilot™
A
WIKING® Autopilot™
Yes
Efficiency (%)
79,0
Nominal heat output (kW)
4.8
Smoke outlet (Ø)
125,0/150,0
Chimney draught, recommended (Pa)
12.0
Product measurements (cm)
Height
103,7
Width
55,6
Depth
37,9
Combustion chamber
34,0
Weight (kg)
With natural stone cladding, grey
166,0
Connection measurements (cm)
From floor, top
94,7
Fresh air kit
Combustion air system can be mounted, back (Ø 100 mm) - additional purchase
Yes
Combustion air system can be mounted, bottom (Ø 100 mm) - additional purchase
Yes
Combustion air system
Combustion system
WIKING® Autopilot™
Distance to combustible materials (cm)
Mantel piece
75,0
Ceiling
75.0
Distance to combustible materials, insulated flue gas pipe (cm)
Behind
7,5
Side
25,5
Sides, in front of the stove
45,0
In front
105,0
Furnishing in front
105,0
Corner, 45°
10,0
Distance to combustible materials, uninsulated flue gas pipe (cm)
Behind
12,5
Side
25,5
Sides, in front of the stove
45,0
In front
105,0
Furnishing in front
105,0
Corner, 45°
12,5
Approvals
EN 16510
Yes
EN 16510 type CA
Yes
BImSchV Stufe 2
Yes
ECODESIGN Compliant
Yes
Designed by
